EDJ Fire Pump System Electric Diesel Jockey Pump Split Case Pump
EDJ Fire Pump System Electric Diesel Jockey Pump Split Case Pump
π Product Overview:
The EDJ Split Case Pump Fire Pump System is a high-performance firefighting solution that integrates Electric, Diesel, and Jockey pumps in a single, efficient package. Designed in high quality standards, this system ensures reliable operation across a wide range of critical fire protection applications.
Ideal for commercial buildings, warehouses, factories, airports, hospitals, and high-rise residential complexes, the EDJ series offers unmatched flexibility, efficiency, and system redundancy β ensuring uninterrupted protection even in power outages or pressure drops.
-When pressure drops, the jockey pump automatically starts to stabilize the system.
-If pressure continues to drop, the main electric pump activates.
-In case of power failure, the diesel pump takes over to ensure continued operation.
-This layered response guarantees constant water supply under any emergency.

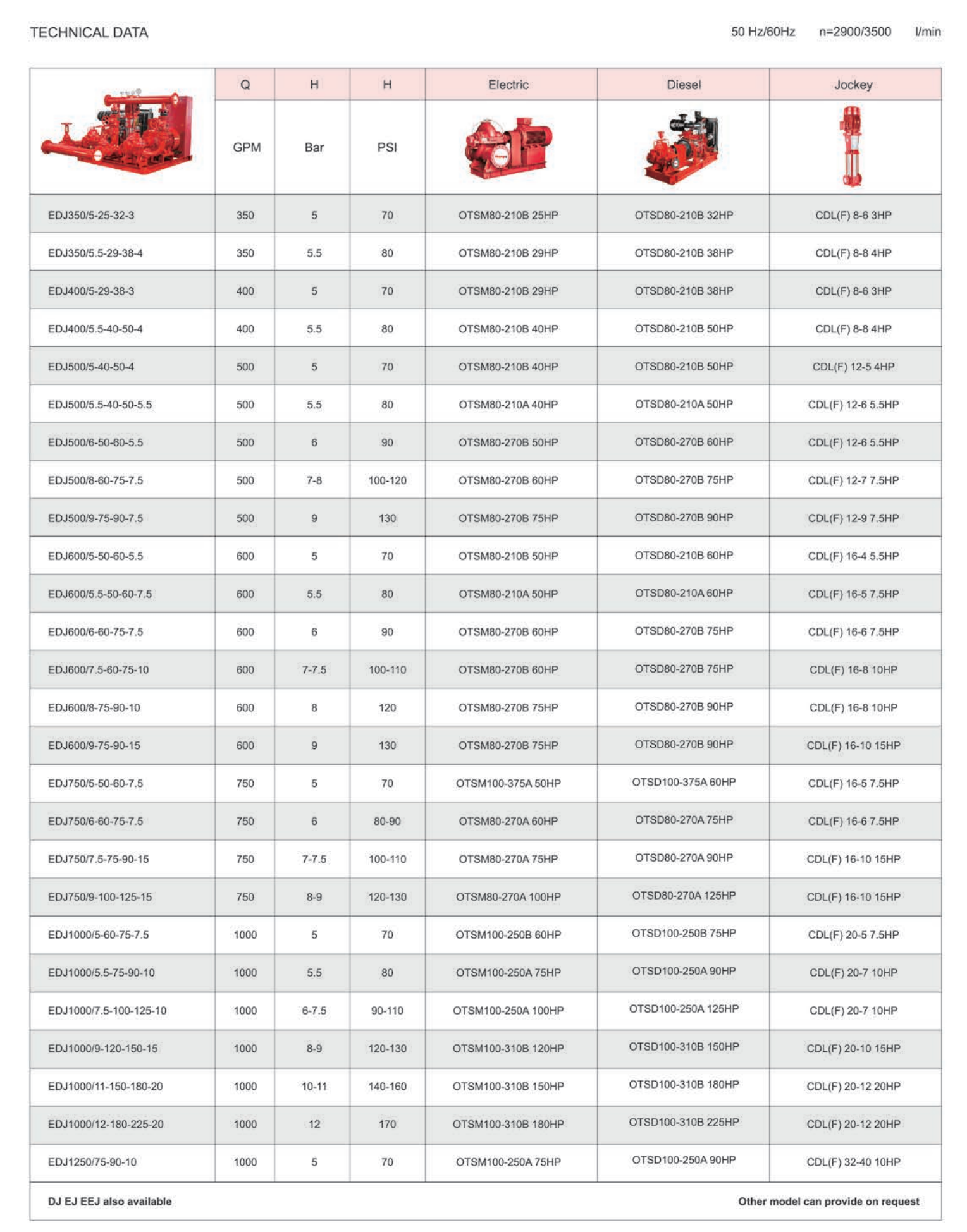

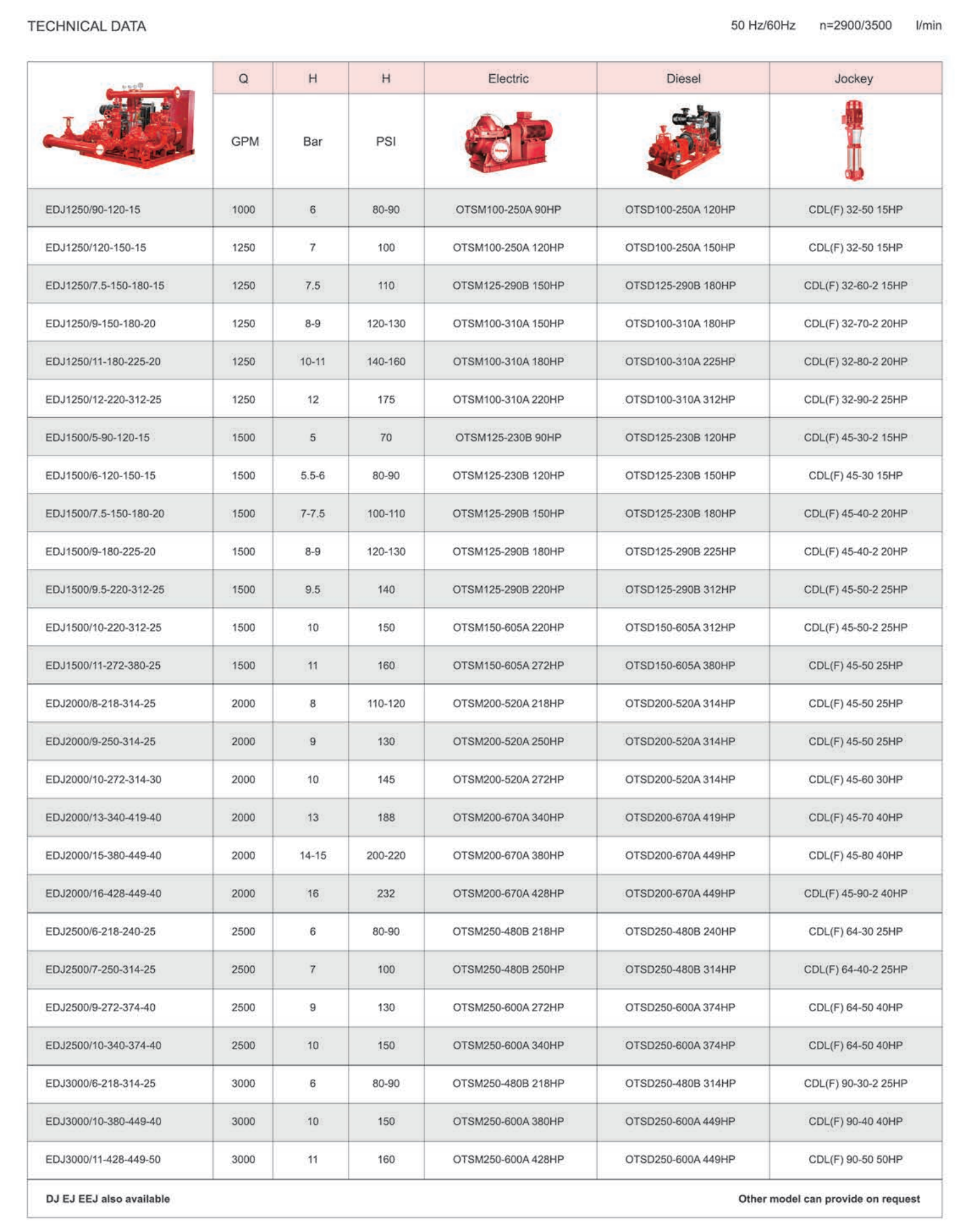

βοΈ Technical Specifications:
-Max Flow: 300-20000 GPM
-Max Head: 10-200 m
-Power Range: 22-1670HP
π οΈ Customized for Your Needs:
Available in end suction, split case, vertical turbine, and multistage desi
Material options: Cast iron, stainless steel, bronze etc
Optional configurations: 3-in-1 controllers, separate control cabinets, valves, and pressure tanks
Customizable based on flow, head, material, and installation method
Taizhou Shynpo Factory&Trading Co., Ltd.
Shynpo is the subsidiary of Shanghai Pump Manufacture Co.,Ltd. , which is the leading supplier in fluid industry since 1930 .By combining innovative technology,excellent quality and one-stop service, we offer the intelligen-tized solution for customers.
β Frequently Asked Questions (FAQ)
π’ 1. Where can this fire pump system be used?
Our EDJ fire pump systems are ideal for commercial buildings, industrial facilities, warehouses, hospitals, airports, and residential high-rise projects β anywhere fire protection is critical.
π 2. Can I customize the pump set according to my project?
Yes. We offer customized fire pump sets, including flow/head requirements, materials (cast iron, stainless steel, bronze), motor type, and control panels (3-in-1 or separate cabinets).
π 3. Do you ship internationally?
Yes! We have exported to over 60 countries, including the Middle East, Southeast Asia, Africa, South America, and Europe. We offer FOB, CIF, and EXW terms.
π§° 4. Do you offer installation or technical support?
We offer technical consultation, remote guidance, and spare parts supply. On-site service can be arranged for large projects through our authorized partners.
π 5. What is the lead time for production and shipping?
Standard systems: 30-45 working days
Shipping time depends on your port and method.
π³ 6. What are your payment terms?
Our usual terms are:
30% deposit, 70% balance before shipment
T/T (bank transfer) preferred
LC at sight is negotiable for large orders
