Shynpo
EDJ Fire Pump System Electric Diesel Jockey Pump Vertical Turbine Pump
EDJ Fire Pump System Electric Diesel Jockey Pump Vertical Turbine Pump
π Product Overview:
The Turbine fire pump set is composed of multiple centrifugal impellers, guide casing, water pipes, transmission shafts, pump base motors and other components. The pump base and motor are located above the pool, and the power of the motor is transmitted to the impeller shaft through the transmission shaft concentric with the water pipe, thereby generating flow and pressure.
Product compositio
EDJ is composed of electric pump, diesel pump, Jockey pump and Fire Pump Control Panel. We can help you to assemble it according to the type of pump you choose.
Fire Pump Control Panel:
Fire pump control panel is the pump system brain that designed to control and monitor the operation of the Electric,Diesel and Jockey pumps drivers, and makes up pumps for both Manual&automatic models, as well as turns pumps drivers ON/OFF under specific conditions.
Diesel Pump:
Flow head and pressure or other parameters are with Electric pump.The diesel engine connects the pump set with high elastic coupling or universal joint.The diesel pump includes Radiator,base frame, PTO shaft, stop solenoid,vibration absorb,air filter, controller,muffler,tool box,plywood case.
Electric Pump:
Kinds of end suction pump,split case pump,single stage pump,multistage pump,pump case made of cast iron or stainless steel impeller can be copper.
Jockey pump:
Vertical pump type, the technical are different with the electric or diesel pump,can be customized. It usually small flow, head is higher than electric or diesel pump.

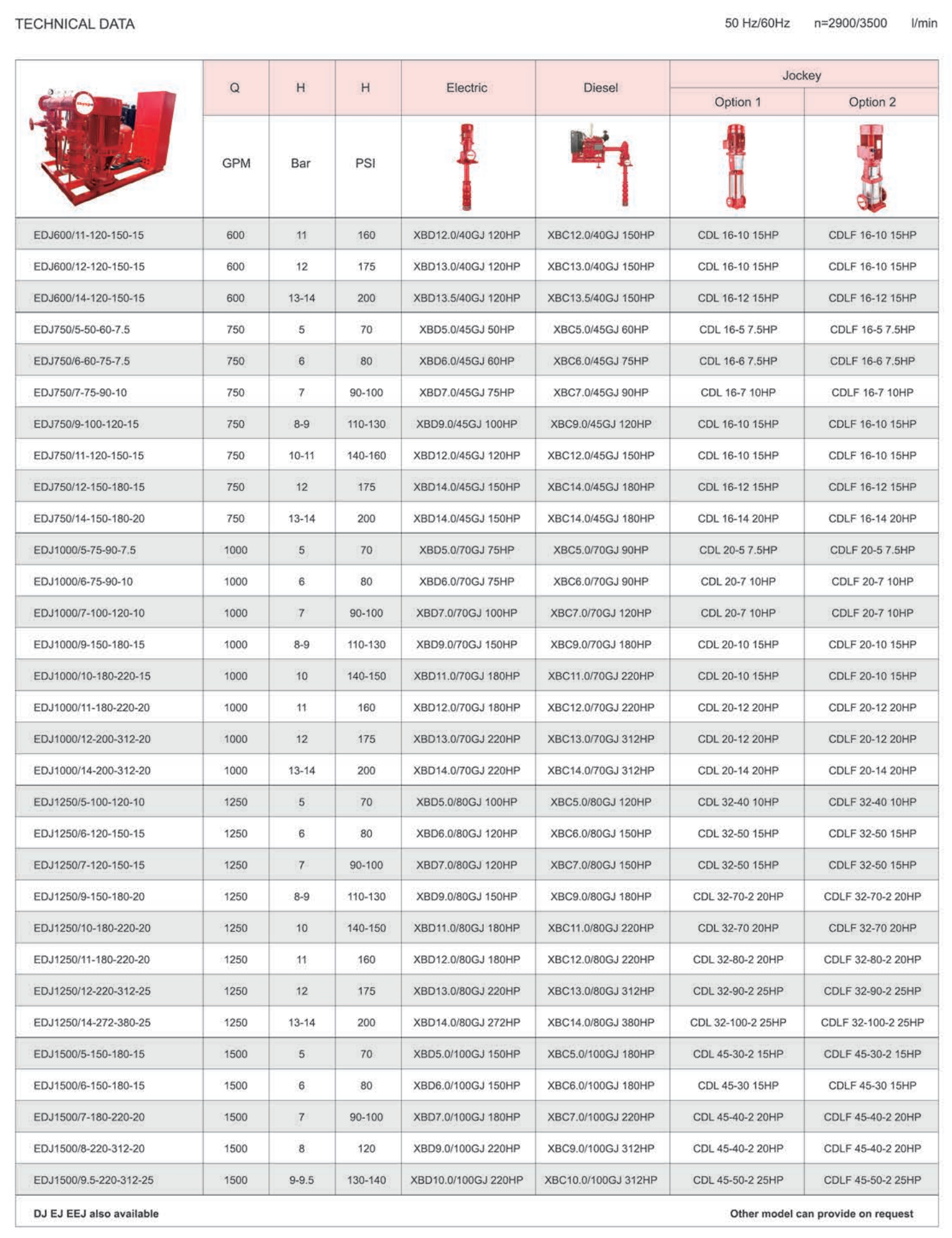

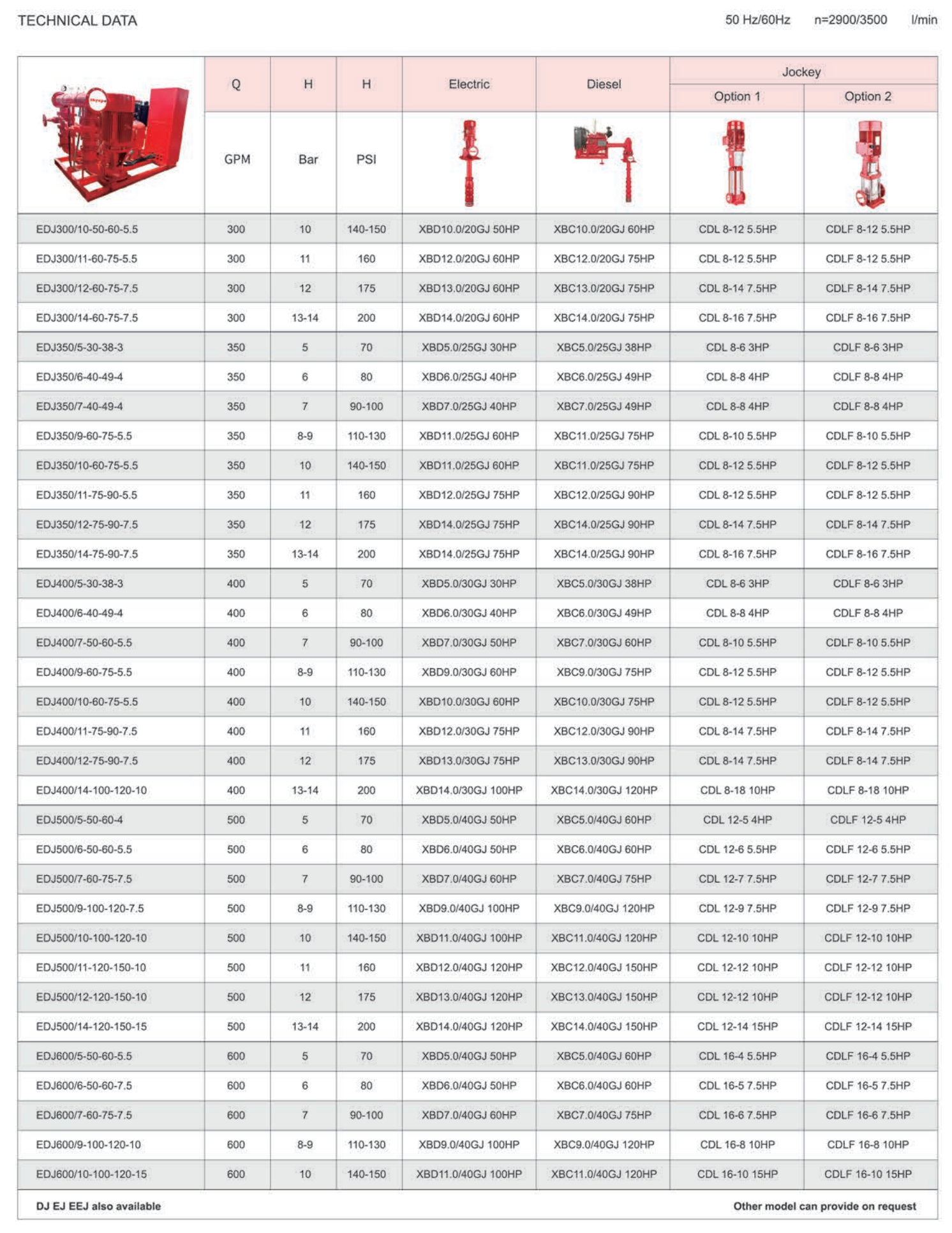

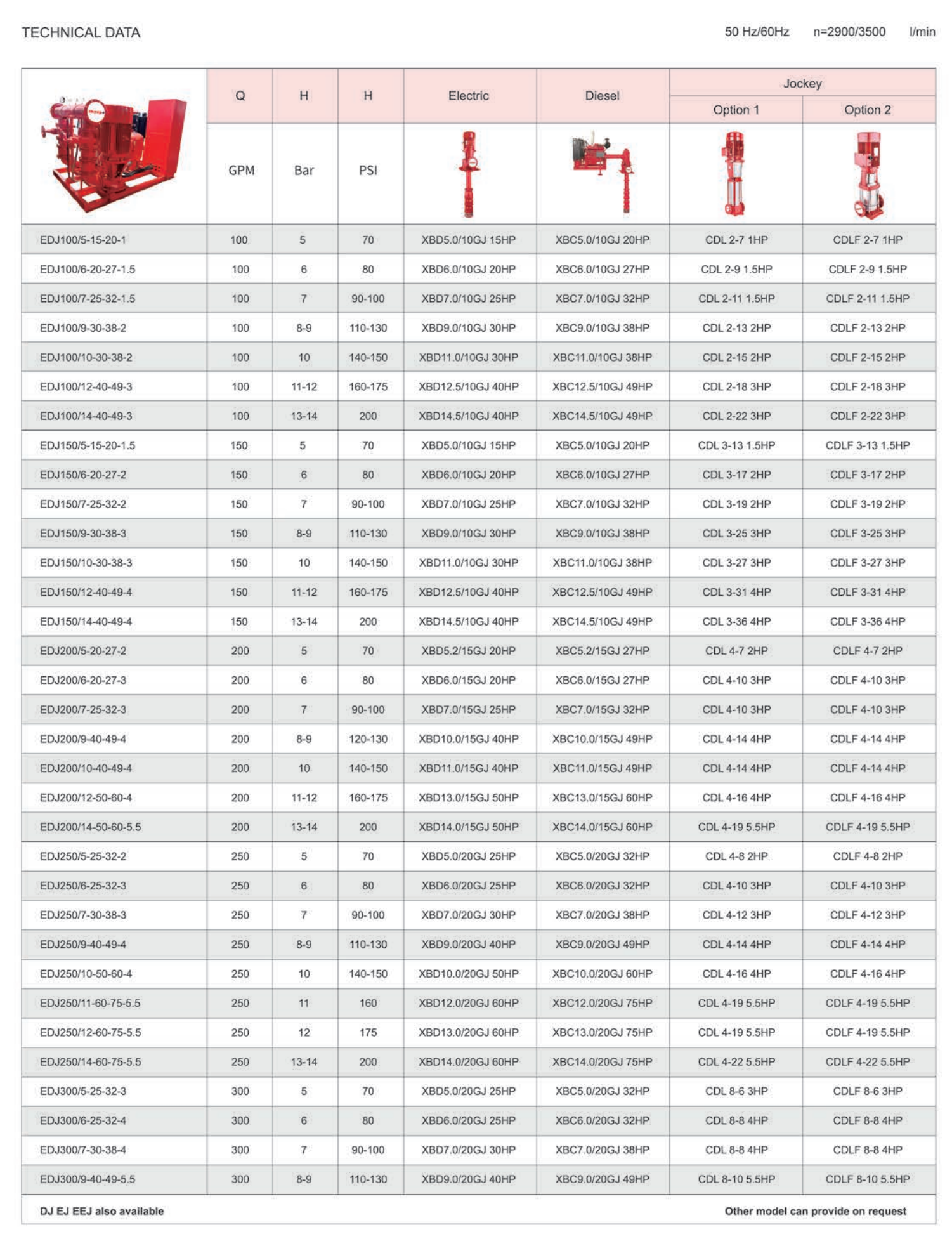

βοΈ Technical Specifications:
-Max Flow: 15-2000 GPM
-Max Head: 30-200 m
π οΈ Customized for Your Needs:
Available in end suction, split case, vertical turbine, and multistage desi
Material options: Cast iron, stainless steel, bronze etc
Optional configurations: 3-in-1 controllers, separate control cabinets, valves, and pressure tanks
Customizable based on flow, head, material, and installation method
Taizhou Shynpo Factory&Trading Co., Ltd.
Shynpo is the subsidiary of Shanghai Pump Manufacture Co.,Ltd. , which is the leading supplier in fluid industry since 1930 .By combining innovative technology,excellent quality and one-stop service, we offer the intelligen-tized solution for customers.
β Frequently Asked Questions (FAQ)
π’ 1. Where can this fire pump system be used?
Our EDJ fire pump systems are ideal for commercial buildings, industrial facilities, warehouses, hospitals, airports, and residential high-rise projects β anywhere fire protection is critical.
π 2. Can I customize the pump set according to my project?
Yes. We offer customized fire pump sets, including flow/head requirements, materials (cast iron, stainless steel, bronze), motor type, and control panels (3-in-1 or separate cabinets).
π 3. Do you ship internationally?
Yes! We have exported to over 60 countries, including the Middle East, Southeast Asia, Africa, South America, and Europe. We offer FOB, CIF, and EXW terms.
π§° 4. Do you offer installation or technical support?
We offer technical consultation, remote guidance, and spare parts supply. On-site service can be arranged for large projects through our authorized partners.
π 5. What is the lead time for production and shipping?
Standard systems: 30-45 working days
Shipping time depends on your port and method.
π³ 6. What are your payment terms?
Our usual terms are:
30% deposit, 70% balance before shipment
T/T (bank transfer) preferred
LC at sight is negotiable for large orders
