EDJ Fire Pump System Electric Diesel Jockey Pump with Horizontal Multistage Centrifugal
EDJ Fire Pump System Electric Diesel Jockey Pump with Horizontal Multistage Centrifugal
📌 Product Overview:
The serial pump is multi-stage section centrifugal pump,the excellent hydraulic models are high-efficiency,energy-saving, and have wide performance range,operating safety & steady, low noise, long life and installing & repairing is veryconvenient etc. It can deliver heat water, oil, corrosive or wearable medium by changing the material, seal or adding cooling system.Type SD pump can deliver water without solid particle or the liquid which the chemical and physical feature are similar with water and temperature is≤80°c , it is suitable for delivering mater in mine and urban water project etc. Type SDG pump can deliver clean water without solid particle or the liquid which the chemical and physical feature are similar with water, and temperature is≤105°c，it is suitable for delivering boiler feed water or heat water.Type SMD pump can deliver the neuter mineral water which solid particles percent ≤1.5%(solid Dia. <0.5mm) and other similar sewage, the temperature of the liquid is ≤80°c . it is suitable for steel works, mines, cities projects etc.Type SDF pump can deliver the corrosive liquid without solid particle, which temperature is from-20°c ~ 150°cType SDY pump deliver oil or oil products without solid grain, viscosity≤120ct, range of temperature is from -20°c to 150°c.Inlet pressure of pumps is less than 0.6MPa.
Product composition
EDJ is composed of electric pump, diesel pump, Jockey pump and Fire Pump Control Panel. We can help you to assemble it according to the type of pump you choose.
Fire Pump Control Panel:
Fire pump control panel is the pump system brain that designed to control and monitor the operation of the Electric,Diesel and Jockey pumps drivers, and makes up pumps for both Manual&automatic models, as well as turns pumps drivers ON/OFF under specific conditions.
Diesel Pump:
Flow head and pressure or other parameters are with Electric pump.The diesel engine connects the pump set with high elastic coupling or universal joint.The diesel pump includes Radiator,base frame, PTO shaft, stop solenoid,vibration absorb,air filter, controller,muffler,tool box,plywood case.
Electric Pump:
Kinds of end suction pump,split case pump,single stage pump,multistage pump,pump case made of cast iron or stainless steel impeller can be copper.
Jockey pump:
Vertical pump type, the technical are different with the electric or diesel pump,can be customized. It usually small flow, head is higher than electric or diesel pump.

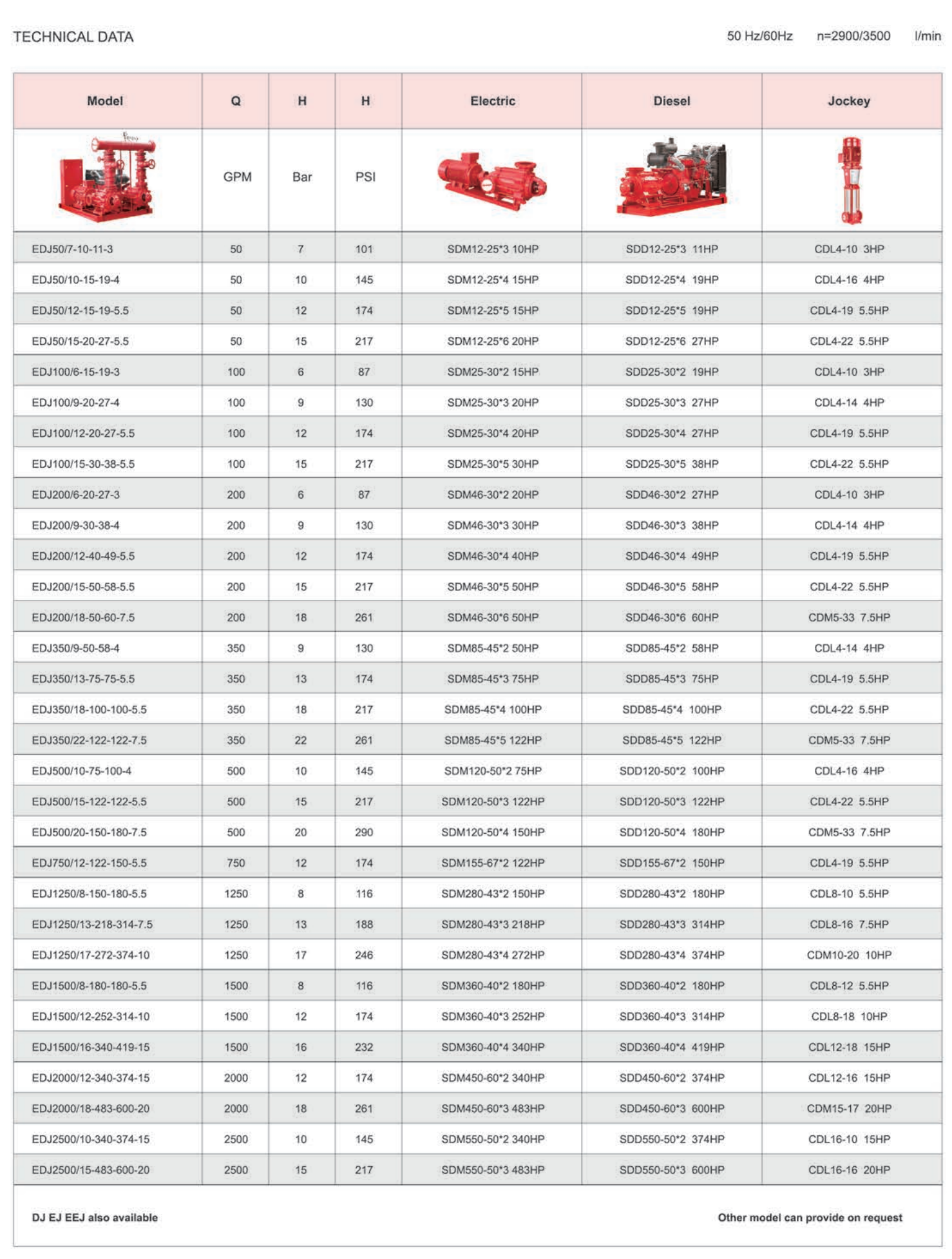

⚙️ Technical Specifications:
-Max Flow: 20-3600 GPM
-Max Head: 20-680 m
-Power Range: 2-495HP
🛠️ Customized for Your Needs:
Available in end suction, split case, vertical turbine, and multistage desi
Material options: Cast iron, stainless steel, bronze etc
Optional configurations: 3-in-1 controllers, separate control cabinets, valves, and pressure tanks
Customizable based on flow, head, material, and installation method
Taizhou Shynpo Factory&Trading Co., Ltd.
Shynpo is the subsidiary of Shanghai Pump Manufacture Co.,Ltd. , which is the leading supplier in fluid industry since 1930 .By combining innovative technology,excellent quality and one-stop service, we offer the intelligen-tized solution for customers.
❓ Frequently Asked Questions (FAQ)
🏢 1. Where can this fire pump system be used?
Our EDJ fire pump systems are ideal for commercial buildings, industrial facilities, warehouses, hospitals, airports, and residential high-rise projects — anywhere fire protection is critical.
📏 2. Can I customize the pump set according to my project?
Yes. We offer customized fire pump sets, including flow/head requirements, materials (cast iron, stainless steel, bronze), motor type, and control panels (3-in-1 or separate cabinets).
🌍 3. Do you ship internationally?
Yes! We have exported to over 60 countries, including the Middle East, Southeast Asia, Africa, South America, and Europe. We offer FOB, CIF, and EXW terms.
🧰 4. Do you offer installation or technical support?
We offer technical consultation, remote guidance, and spare parts supply. On-site service can be arranged for large projects through our authorized partners.
🚚 5. What is the lead time for production and shipping?
Standard systems: 30-45 working days
Shipping time depends on your port and method.
💳 6. What are your payment terms?
Our usual terms are:
30% deposit, 70% balance before shipment
T/T (bank transfer) preferred
LC at sight is negotiable for large orders
