Welcome to the pinnacle of high-pressure water pumping solutions with our Horizontal Boiler Feed Centrifugal Water Pump. Engineered for efficiency and reliability, this pump is a critical component in boiler feed systems and industrial applications requiring precise water flow and pressure control. Explore the detailed features and benefits below to understand why this pump is the optimal choice for your high-pressure water pumping needs.

Model CG-D pump is a horizontal multi-stage centrifugal pump and suitable for transporting pure water (with the contained foreign matters' content less than 1% and

graininess less than 0.1mm) and other liquids of both physical and chemical natures similar to those of pure water.

CG-D model middle and low pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 105, and is also applicable for

small boiler water supply or transporting medium similar to hot water.

Key Features:

High-Pressure Performance: The Horizontal Boiler Feed Centrifugal Water Pump is designed to deliver high-pressure water flow, essential for boiler feed systems and industrial processes.

Robust Construction: Crafted from high-quality materials, this pump ensures longevity and reliability in demanding industrial environments.

Efficiency: Equipped with advanced technology, this pump operates efficiently, reducing energy costs while maintaining superior performance levels.

Precise Water Control: Offering precise control over water flow and pressure, this pump is ideal for maintaining optimal operation in boiler feed systems.

Horizontal Design: The horizontal configuration of the pump enables easy installation and maintenance, ensuring seamless operation in industrial settings.

Performance range of CGD series boiler feed pump

Flow: 3.75~185m/h

Corollary power: 4.0~400kW

Head: 69~684m

Inlet diameter: 40~150mm

CG-D model hypo-high-pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 160, and is also applicable for small

boiler water supply or transporting medium similar to hot water.

Performance range of CGD series boiler feed pump

Flow: 15~300m/h

Corollary power: 75~1250kW

Head: 390~1050m

Inlet diameter: 65~200mm

Experience unmatched efficiency and reliability with our Horizontal Boiler Feed Centrifugal Water Pump. Engineered for high-pressure performance and durability, this pump is the ideal solution for boiler feed systems and industrial applications requiring precise water flow and pressure control. Invest in a pump that prioritizes efficiency, reliability, and ease of maintenance to optimize your industrial water pumping operations. Contact us today to learn more about integrating the Horizontal Boiler Feed Centrifugal Water Pump into your system and elevate your high-pressure water pumping capabilities.

For this series horizontal multi-stage centrifugal pump,both ends of it are supported,the casing portion is in a sectional form,it is connected to and actuated by a motor via

are silent clutch and the rotating direction of it,viewing from the actuating end, is clockwise.Refer to Fig.1 for the structure of it.

Stator Portion

The stator portion consists of the suck-in section, middle-section, spitting section, guide vane, and packing, all linked together with a take-up bolt, with both suck-in and spitting mouths vertically upward.

Rotor Portion

The rotor portion comprises a shaft, impeller, balancing disk, and muff.

Bearing Portion

The entire rotor is supported by roller bearings or sliding bearings on both ends of the shaft. These bearings are lubricated with grease or 20-engine oil.

Cooling and Seal of Pump

The joint between the suction section, intermediate section, and discharge section is coated with molybdenum disulfide lubricating grease for sealing. The rotor and fixed parts are sealed by seal rings, guide-vane jackets, and packing. The packing tensile degree of the shaft seal should be proper, allowing feasible seep by dip. Unload run should be forbidden.

The seal ring and guide vane jacket should be replaced if they are too worn to be effective, to avoid damaging the pump. A spare shaft sleeve near the shaft seal protects the pump shaft. The shaft seal should hold water and seal water. For liquids transferred above 80℃, cooled water should be added to the water cooling packing gland and shaft seal cooling chamber. Both cooled and seal water should be clean and at normal temperatures.

- The pressure of cooled water should be 1.5~3 Kg/cm².

- The pressure of seal water should be more than 0.5~1 Kg/cm² of the seal chamber.

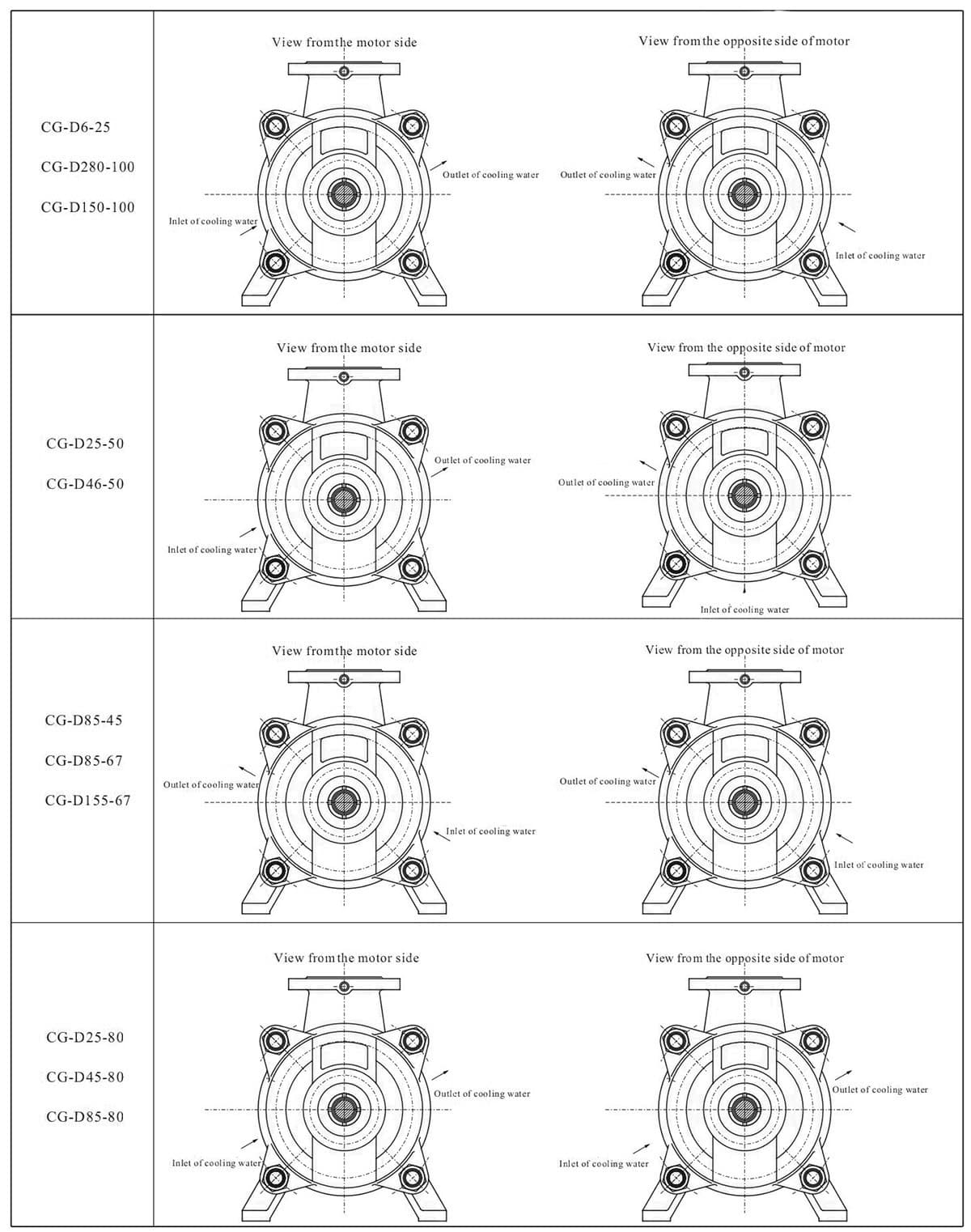

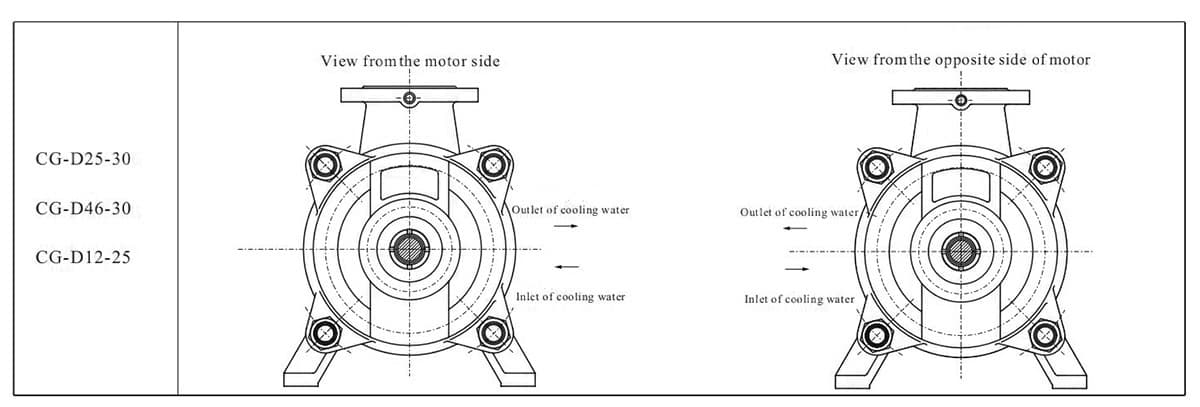

The positions of cooling water pipe joints vary by pump type. Refer to the construction drawing of the pump for axial positions and Chart 1 for radial positions. Shaft seals are classified as packing seal and mechanical seal. The water seal for the packing seal is industrial water, with a pressure of 2-3 Kg/cm². The flushing water for the mechanical seal is softened water, with pressure 3 Kg/cm² higher than the inlet pressure.

As a professional horizontal multistage boiler feed pump manufacturer, we ensure that every component of our pumps meets the highest standards of quality and efficiency.
