OTK Type Double Suction Horizontal Split Centrifugal Pump

OTK Type Double-stage Horizontal Split Centrifugal Pump

OTK Series Horizontal Double-suction Axially Split Centrifugal Pumps are our new generation productswith abroad leading technologies.  The series pump features in higher efficiency, lower NPSH, lower runningnoise and stable with a wider application, like waterworks, irrigation and drainage pump station, industrialwater supply system, firefighting system, marine industry, refinery industry and so

Applications

Waterworks: Water intake/Water supply/ Booster

Industrial use: Water intake/Water supply/ Booster/ Circulation/Drainage/Sea-desalination /Chemical/ Refinery/Firefighting.

Agricultural use: Irrigation and Drainage

APPlication Range

Capacity:60-10000m3/h.

Total head:Up to 360m.

Liquid: Fresh water/Industries/River water/Sea water/Brine etc.
Specifications

Specifications Liquid temperature: 105°Cmax

Shaft sealing: Gland packing/Mechanical sealing Flange: GB, ISO, ANSI.

Operation pressure: Up to 5 Mpa max

Discharge nozzle diameter: 65-700 mm

Other specifications can be available if required.

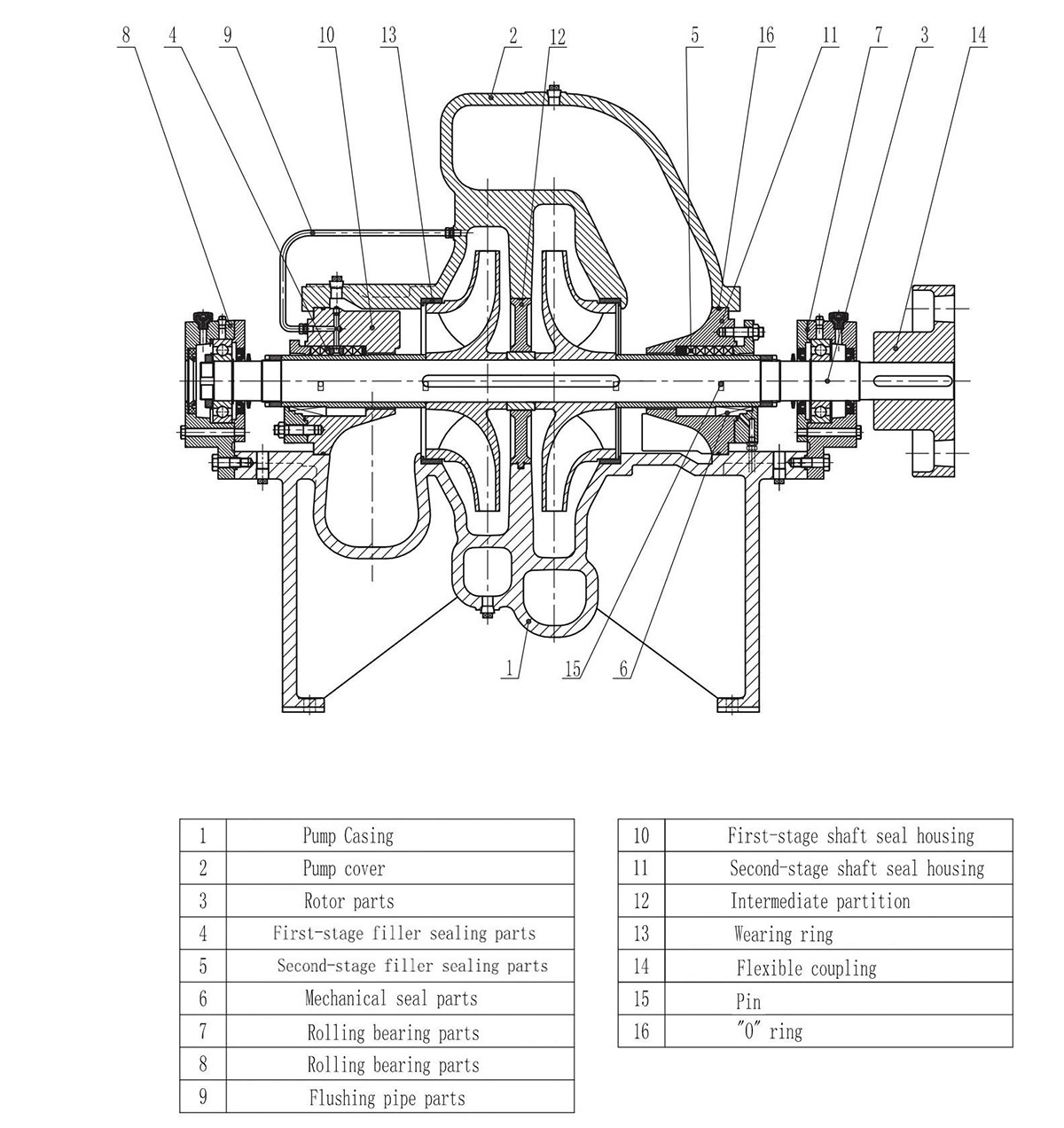

Mainly Design Features for Pumps as Follows

1.Two-stage single-suction axial opening scroll centrifugal pumps connection flange in accorda ISO, BS or ANSI stand priority series o plants, irrigatio power plants, industria air-conditioning systems Docks, fire systems and many other fields.

2.Casing Axial mid-range scroll type pump has the replaceing sealing ring.

3.Impeller Introducing back to back form to balanc the most of the axial force.

3.Shaft The shaft is completely sealed to prevent the fluid leaking the sleeve is in-depth containment.

4.Bearing and lubrication In accordance with the requirements of the design and operating data, the pump is equipped with bearings and lubrication systems.
