OTSM Type Double Suction Centrifugal Pump For Power Station

OTSM Type Double Suction Centrifugal Pump For Power Station

The OTS double-suction split centrifugal pump series is a new generation series of products developed by our company through development and innovation based on the traditional products S.SH and SA series. It has a wide range of performance and the ability to be used for multiple purposes.

Features

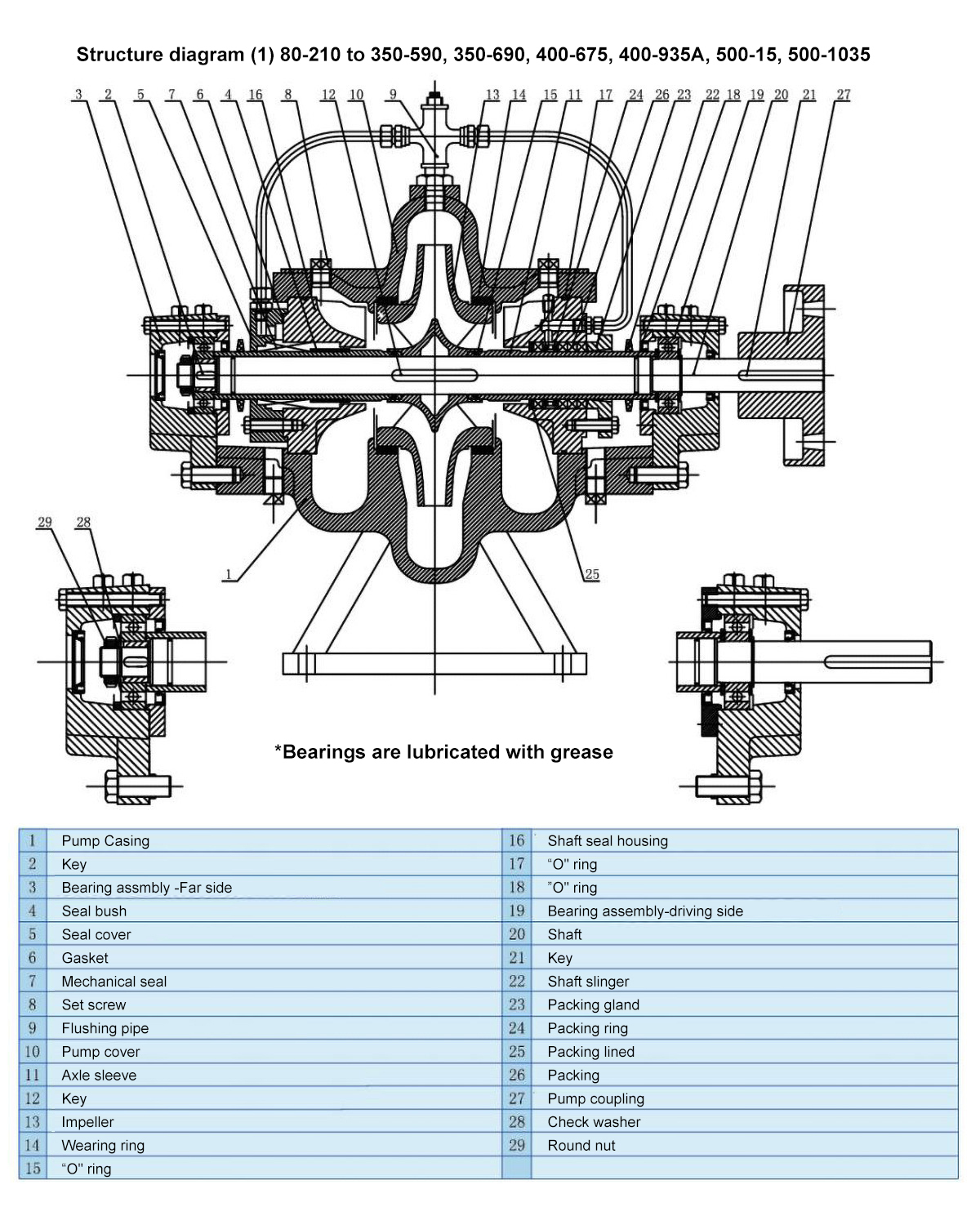

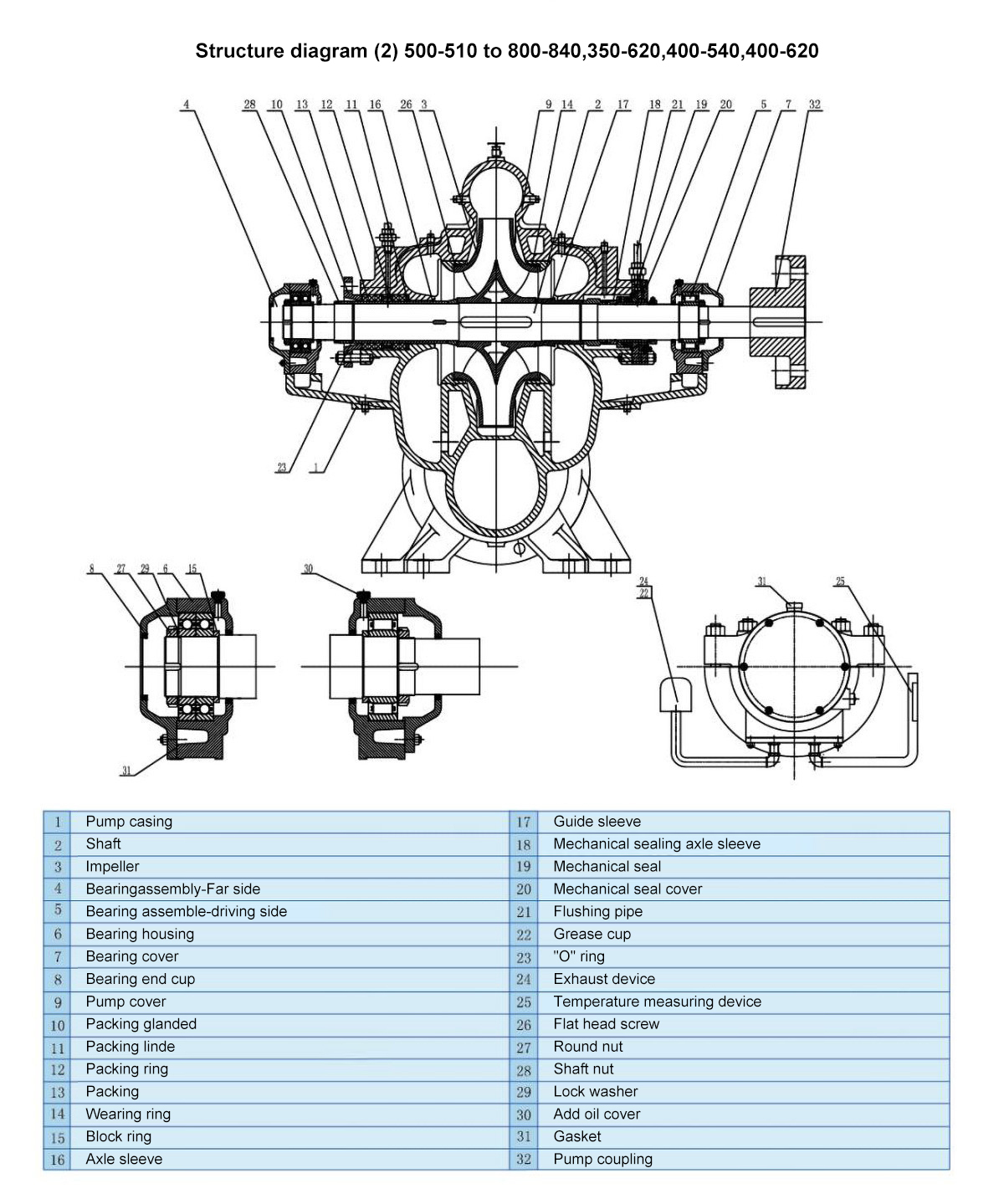

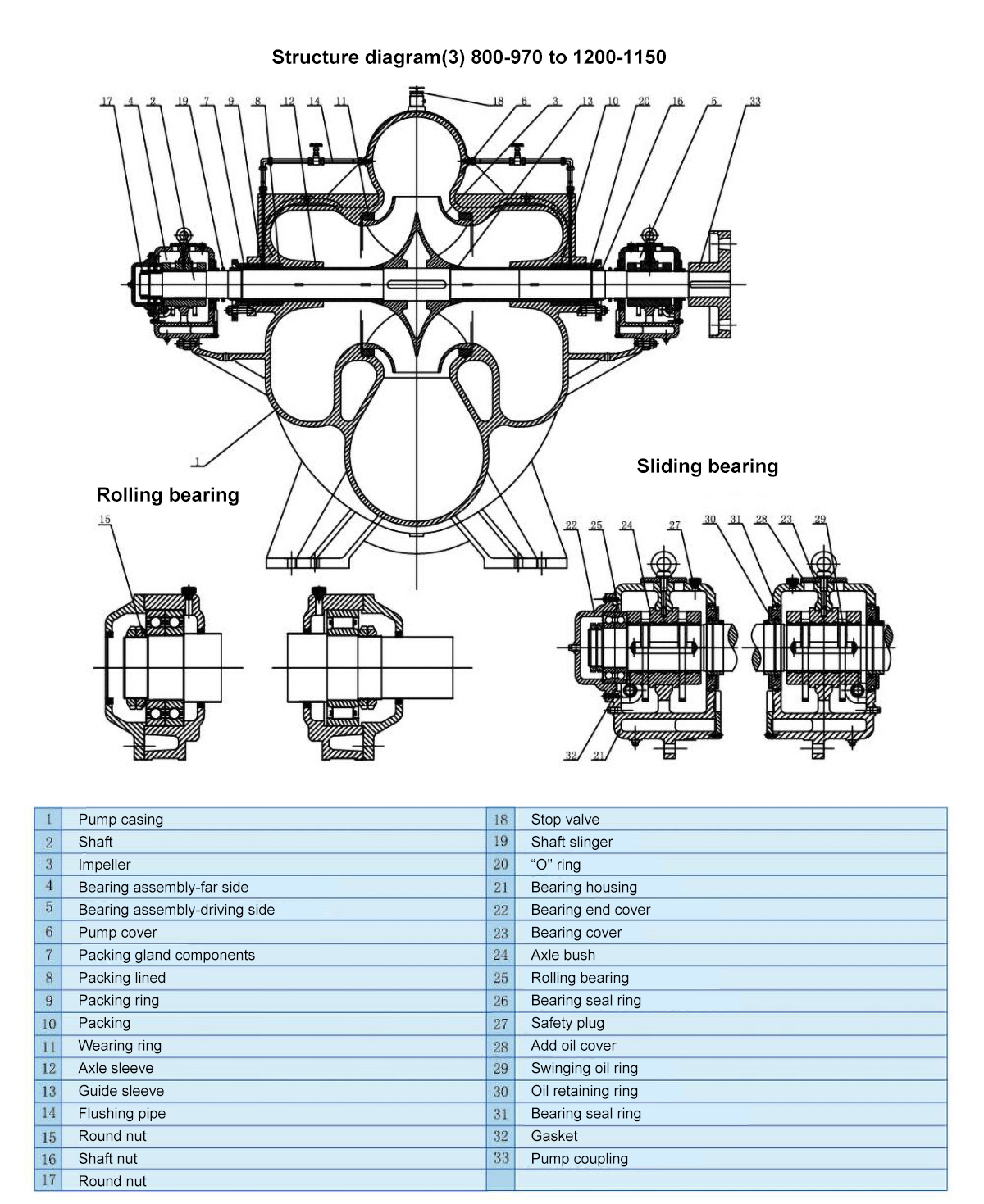

The pump casing is designed with a center opening and is easy to disassemble and inspect. When parts need to be replaced, the alignment center of the pump body and the inlet and outlet pipelines will not be affected.

The double-suction design has excellent suction performance and ensures high suction lift even when operating at large flow rates.

Low noise and good stable operation ensure a quiet environment.

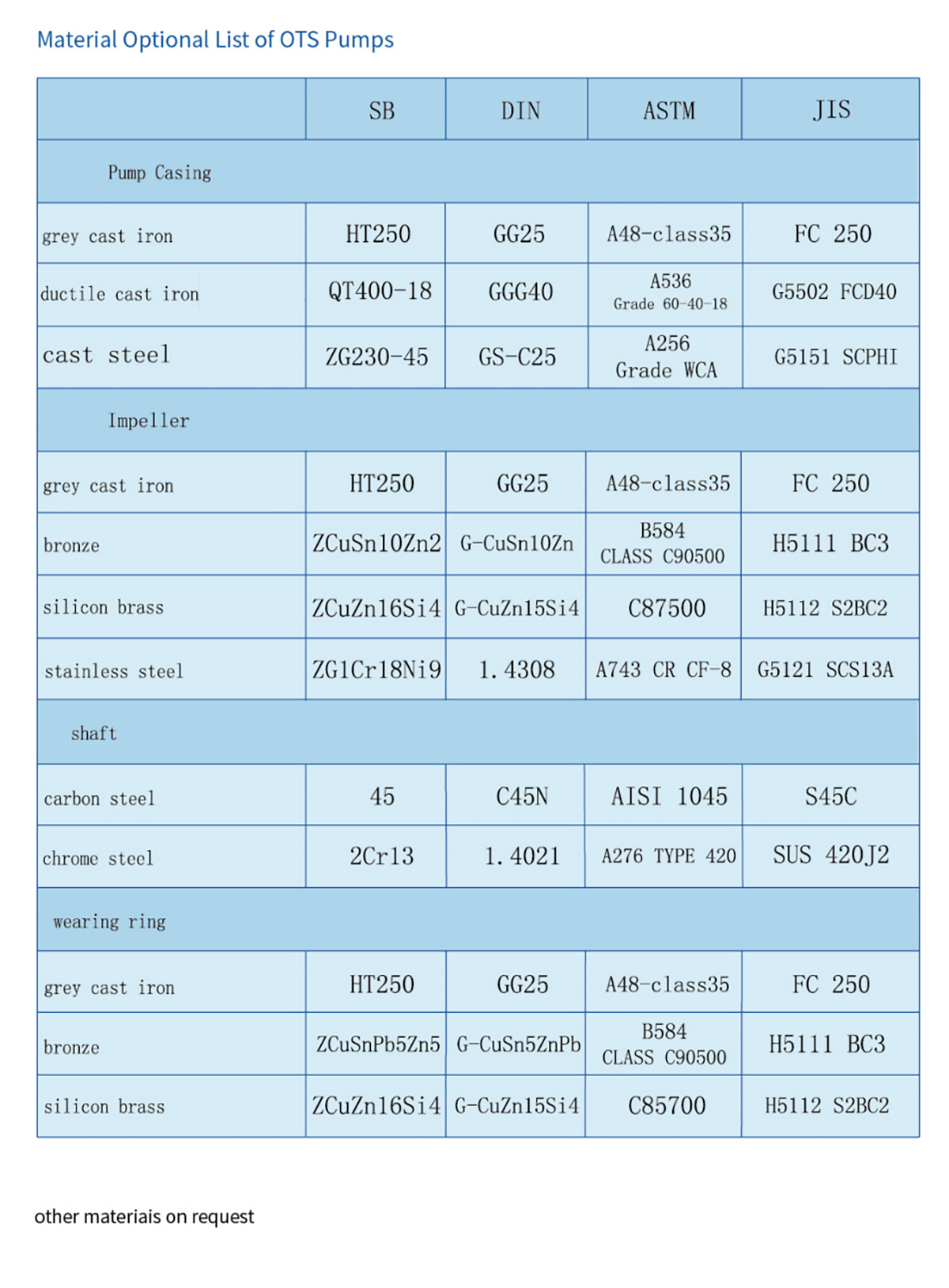

The combination of various materials meets various usage conditions.

The drive shaft end can be on the left or right side of the pump

The pump shaft seal can be a non-cooled packing seal or a non-cooled single-end unbalanced mechanical seal.

Applications

Water plant: water diversion/water supply/pressurized water

Industrial purposes: water diversion/water supply/pressurized water circulating water/drainage/seawater desalination/chemical refining/firefighting

Agricultural purposes: farmland drainage and irrigation

Application range

Flow: about 75-22000 m3/hour

Lift: about 10-220 meters

Transmission medium: clean water/industrial water/river water/sea water/salt water/pulp water/hydrocarbons, etc.

Specifications

Specifications Medium temperature: Maximum 104℃

Shaft seal: packing seal/mechanical seal

Flange standard: GB ISO

Working pressure: up to 2.5 MPa

Exit diameter: 80-1200 mm

Various other specifications can be met upon request.
